ø2.9mm 防火心电线

ø2.9士0.10;TPU (4394);Tinned Copper+Nylon

  • Among all ECG leadwires,the ECG eletrodes wire directly touch patient body,and move most ,and it is the origin of ECG signal.  key factors to consider when choose ECG electrodes wires:
  • Good Flexibility:usually the smaller OD the conductors is,the more flexible the electrodes cable will be.Choose a suitable conductor and matchable cond
  • Good low noise performance:the better the conductivity of the low noise layer is,the better its noise performance will be
  • Biocompatibility are basic requirement for medical cables.
  • Anti-twist performance:As reusable ecg leadwires will be used for many times,and there are many leadwires,they may  be knoted  together. Good anti-twist performance can help nurse or doctor collect the ECG set easier. Usually the bigger the OD is,the better the anti-twist performance will be.



分类:

规格

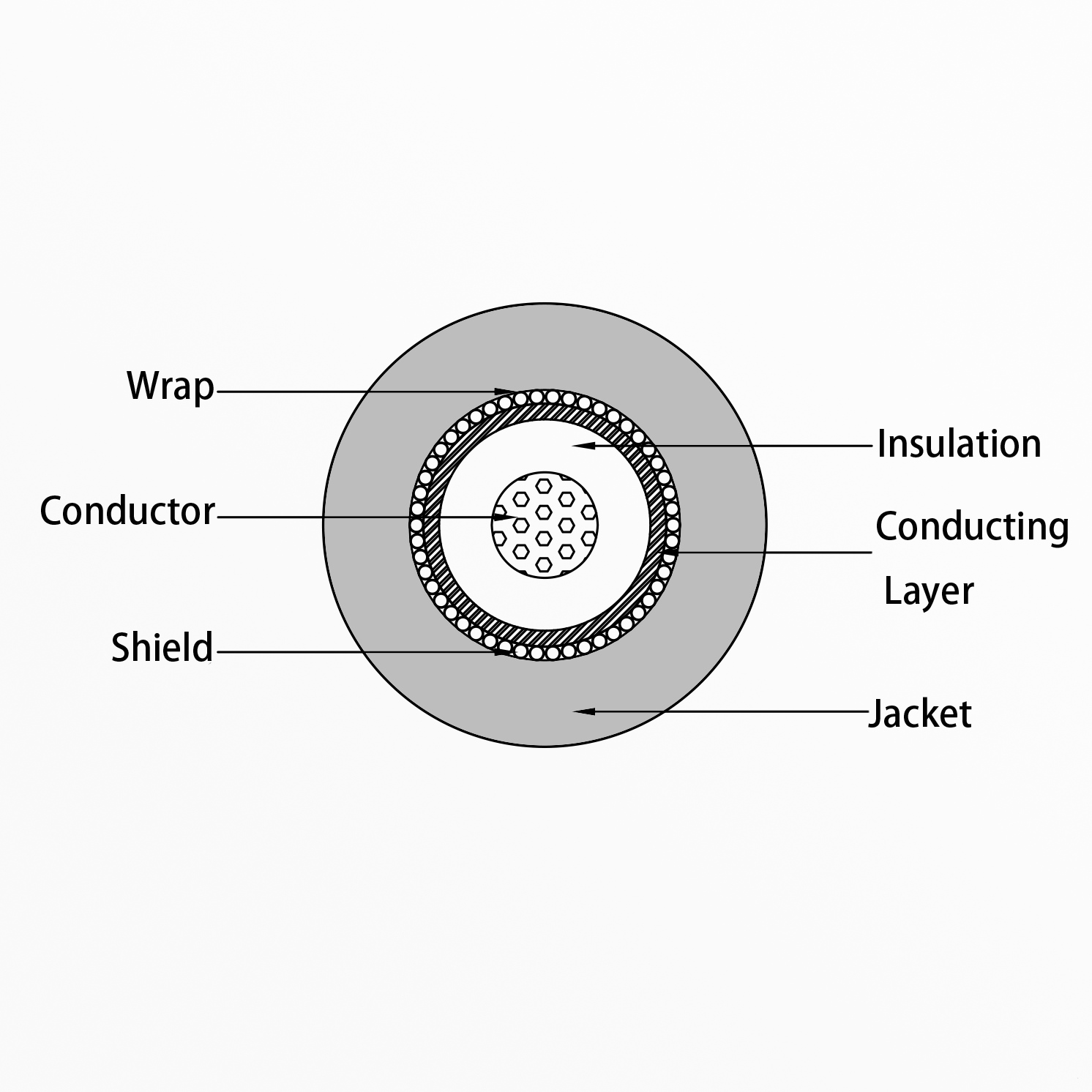

Items Specification
Products name
Model EC201S-005
Conductor Material Tinned copper+Nylon
Specification 28/0.08TC+500D Nylon
Insulation Material HDPE
Nom.Thickness 0.36
Nom.O.D. ø1.40士0.05
Colour Transparent
Conducting Layer Material Semiconductive PVC
Nom.Thickness 0.15
Specification ø1.70士0.08
Colour Black
Wrap Material Contton Tissue
Shield Material Tinned copper
Specification 49士3/0.10TC
Coverage >90%
Jacket Material 4394TPU
Nom.Thickness 0.28
Nom.O.D. ø2.9士0.1
Colour Glossy Gray
