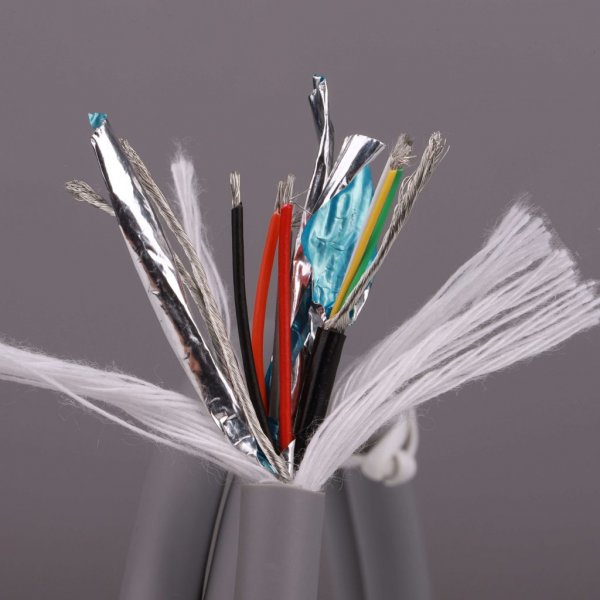

18 Core Double Shieled Medical Sensor Cable
Sensor cables are specialized cables used to connect sensors to electronic devices. Sensors convert one form of energy into another (such as converting electrical signals into ultrasound waves) for data transmission and processing. These cables are designed to ensure accurate and reliable communication between sensors and electronic devices, typically incorporating shielding designs to minimize interference and maintain signal integrity.
规格
| Items | Specification | ||
| Products name | |||
| Model | TR118B | ||
| Conductor 1 | Material | Tinned copper or Copper Alloy | |
| Specification | 7/0.O3TSN | ||
| Insulation 1 | Material | PFA | |
| Nom.Thickness | 0.07 | ||
| Nom.O.D. | ø0.25士0.03 | ||
| Colour | White/Green/Yellow/Black/Blue/Brown/Orange/Red | ||
| Inner Filler | Material | Kevlar | |
| Conductor 2 | Material | Tinned copper or Copper Alloy | |
| Specification | 7/0.O3TSN | ||
| Insulation 2 | Material | PFA | PFA |
| Nom.Thickness | 0.11 | 0.11 | |
| Nom.O.D. | ø0.5士0.05 | ø0.5士0.05 | |
| Colour | White/Green/Yellow/Blue | Black/Brown/Orange/Red | |
| Groundwire | Material | Tinned copper or Copper Alloy | |
| Specification | 25/0.O5TSN | ||
| Isolation | Material | Aluminum leaf | |
| Outer Filler | Material | Contton Thread | |
| Outer Shield | Material | Tinned copper | |
| Specification | 16*12/0.O5TC | ||
| Jacket | Material | 80P-PVC | |
| Nom.Thickness | 0.81 | ||
| Nom.O.D. | ø4.8士0.10 | ||
| Colour | Black | ||
