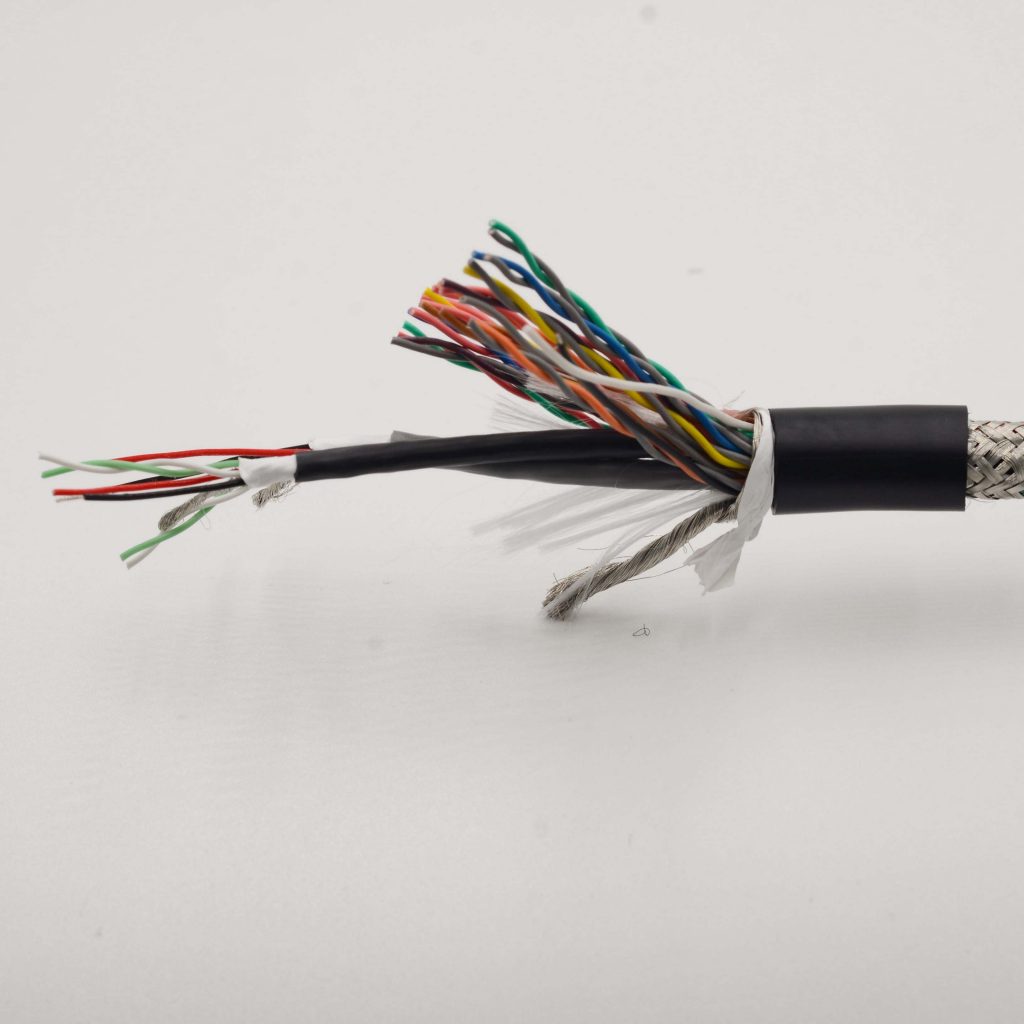

Custom Medical Cable OD11.5MM 34 Core For Medical Special Purpose
the 34 core bulk cable includes 12P twisted pair for data purpose for the interconnection in medical systems.Its application environment is not harsh,so the outer jacket use regular medical PVC. In Medical system interconnection,we recommend TPU or TPV or Silicone rubber more than PVC.
规格
| Specification | ||||
| Conductor | (28AWG*2+26AWG*2)*2 | 28AWG*12P | 28AWG*2C | |
| Tinned copper | Tinned copper | Tinned copper | ||
| Insulation | PE | FEP | PVC | PVC |
| Separator | PTFE | |||
| Inner Jacket | PVC | |||
| Cabling | All Conductors and white polyester filler | |||
| Outer Shield | Tin Plated copper | |||
| Outer Jacket | PVC 75+5A . | |||
| OD | φ11. 5+0. 25 | |||
