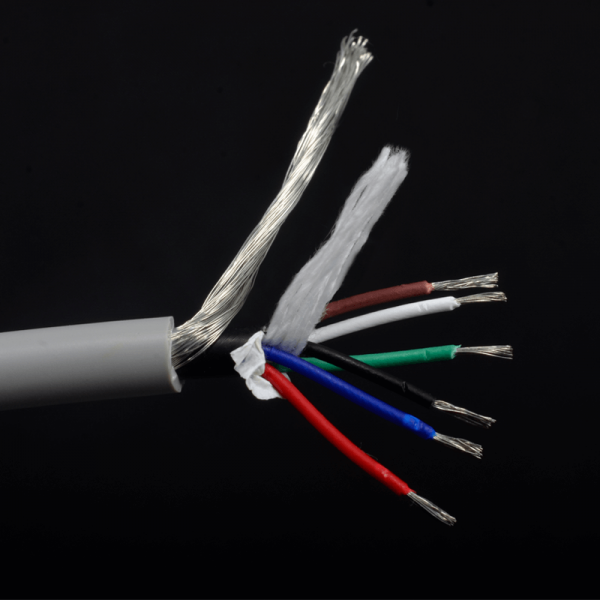

This 6 Conductor Shielded Cable is mainly intended for For ECG,include 6 wire 28 Awg TPU 5040 Jacket.Bared Copper conductor embeded with Nylon to enhance it.Conductive PVC Noise layer.
规格
| Items | Specification | ||
| Products name | 28 AWG 6 conductor shielded Cable | ||
| Model | EC206B-4.7 | ||
| AWG | 28 AWG | ||
| Conductor | Material | 17/0.08BSN+200D KEVLAR | |
| Specification | 8/0.05±0.003 | ||
| Insulation | Material | HDPE | |
| Nom.Thickness | |||
| Nom.O.D. | ø0.90±0.05mm | ||
| Colour | White/Black/Red/Brown/Orange/Blue | ||
| Filler | Material | 10S/5*4 Cotton Thread | |
| Separator | Material | PTFE Tape | |
| Noise layer | Material | Conductive PVC | |
| Specification | Φ3.30±0.10MM | ||
| Braid Shield | Material | Tinned copper | |
| Specification | 16*10/0.08TC | ||
| Coverage | >95% | ||
| Jacket | Material | TPU (5040) | |
| Nom.Thickness | |||
| Nom.O.D. | ø4.70士0.10 | ||
| Colour | Gray | ||
