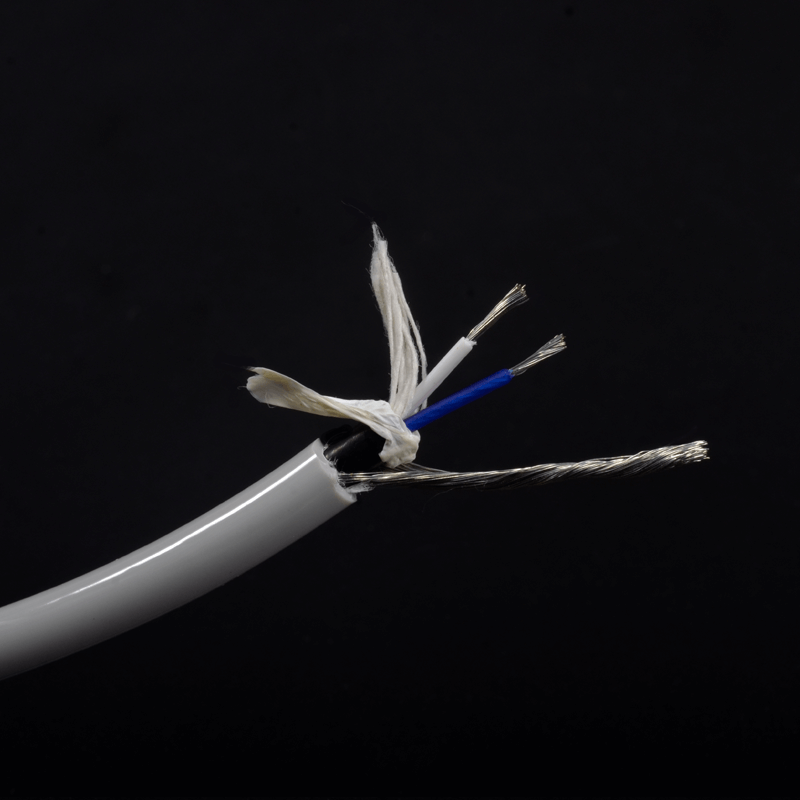

OD5.0MM 24 AWG 2 Conductor Shielded Cable Tinned Copper For ECG Cable Assembly

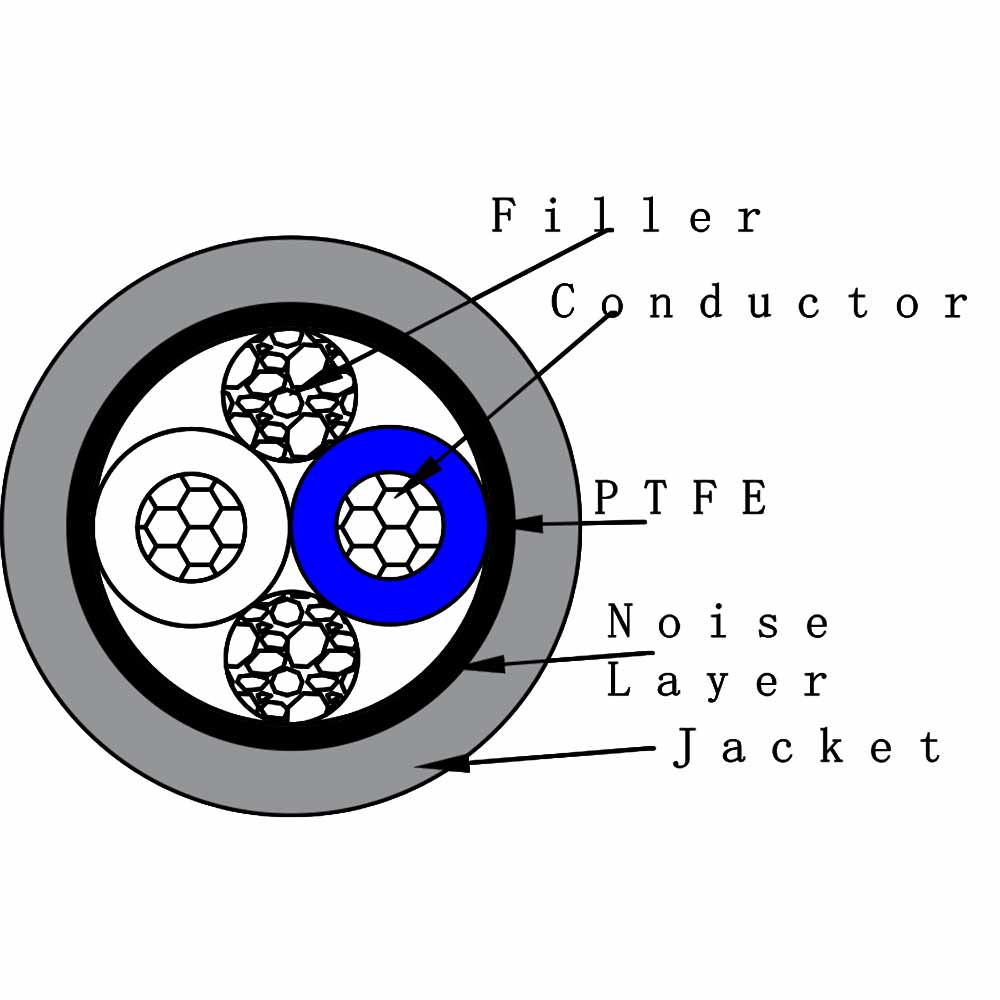

Condoctor:TINNED COPPER

Insulation:HDPE

Filler:Cotton thread

Separator:PTFE TAPE

Noise layer:Conductive PVC

Spiral Shield:Tinned copper

Wrapper:Cotton paper tape

Jacket:TPU (4394)

OD:ø5.0士0.10mm

This 2 Conductor Shielded Cable is main intended ECG Cable Assembly.Each wire is 24 AWG,and there is a overall conducting Low Noise Layer and an outer Shield.

规格

Items Specification
Products name 24 AWG 2 Core Tinned Copper Conductor ECG Cable TPU Jacket
Model EC202S-005
AWG 24AWG
Conductor Material TINNED COPPER
Specification 26/0.10TC
Insulation Material HDPE
Nom.Thickness
Nom.O.D. ø1.10士0.03mm
Colour White/Blue
Filler Material Cotton thread
Separator Material PTFE TAPE
Noise Layer Material Conductive PVC
Nom.O.D. Φ3.4±0.08mm
Colour Black
Sprial Material Tinned copper
Specification 83±3/0.10TC
Coverage >90%
Wrapper Material Cotton paper tape
Jacket Material TPU (4394)
Nom.Thickness
Nom.O.D. ø5.0士0.10mm
Colour Gray
