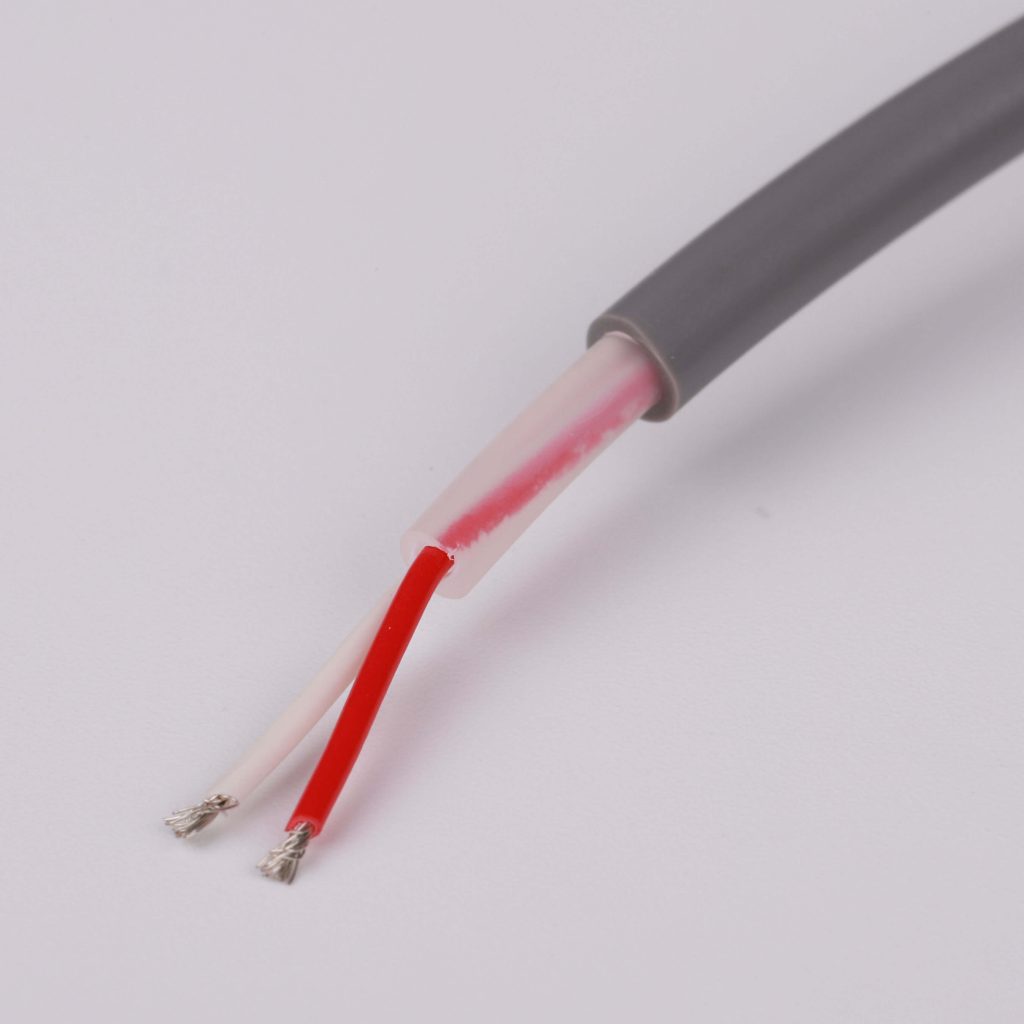

OD4.0MM PVC Jacket 25AWG 2 Core Temperature Sensor Cable For medical

2 Core Temperature Sensor Cable

Conductor:Tinned copper

Insulation :SR-PVC

Jacket:PVC

OD:4.0mm

OD4.0MM PVC Jacket 25AWG 2 Core Temperature Sensor Cable For medical

This type of cable is designed for medical applications as a temperature sensor cable. It features a PVC jacket with an outer diameter of 4.0mm and consists of 2 cores of 25AWG wire. The PVC jacket provides protection and insulation for the wires, making the cable suitable for medical environments. It is specifically engineered to accurately measure temperature and withstand the conditions typically encountered in medical settings.

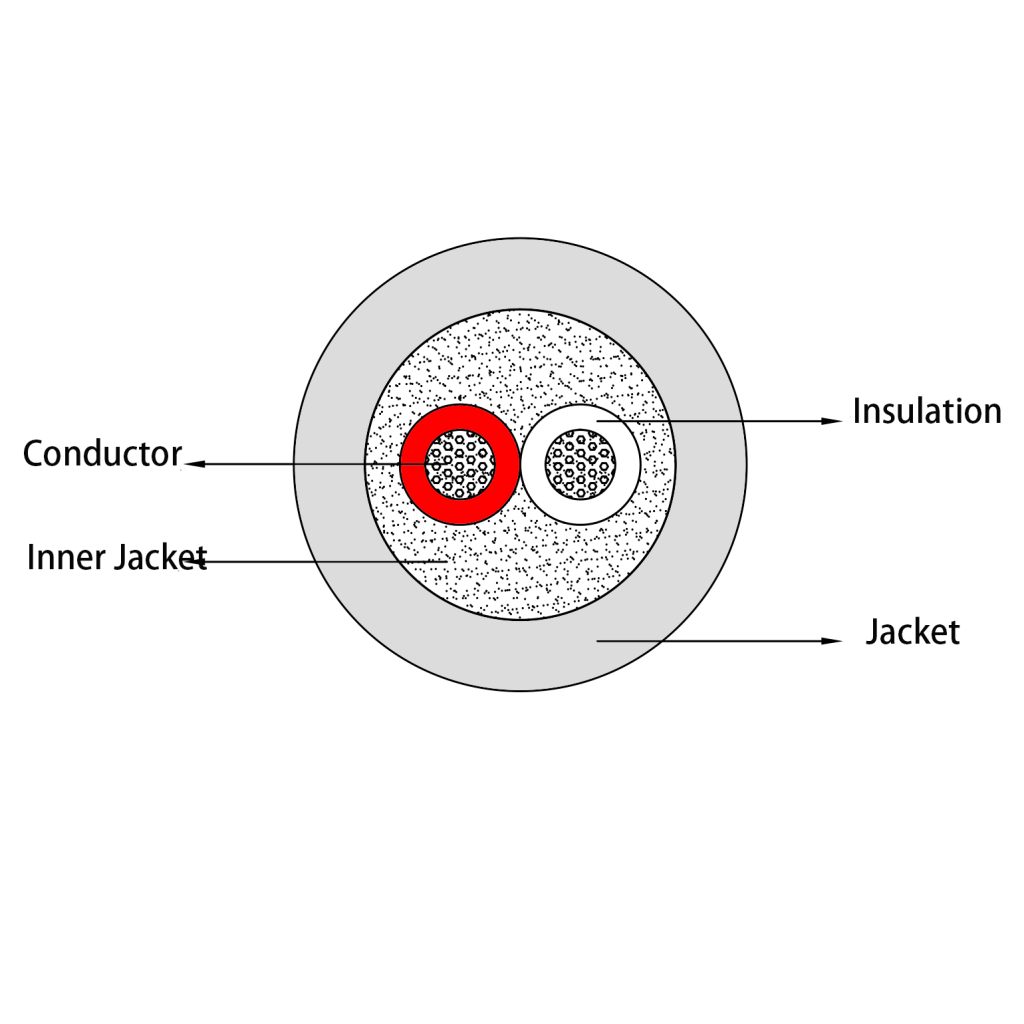

Technical Specification

Items Specification
Products name
Model TT102X
Conductor  Material Tinned copper
 Specification 19/0.10TC
 Insulation  Material SR-PVC
 Nom.Thickness 0.19
 Nom.O.D. ø1.0士0.05
 Colour White/Red
Inner Jacket  Material HDPE
 Nom.Thickness 0.32
 Nom.O.D. ø2.8士0.1
 Colour Transparent
 Jacket  Material PVC
 Nom.Thickness 0.48
 Nom.O.D. ø4.00士0.1
 Colour Gray
