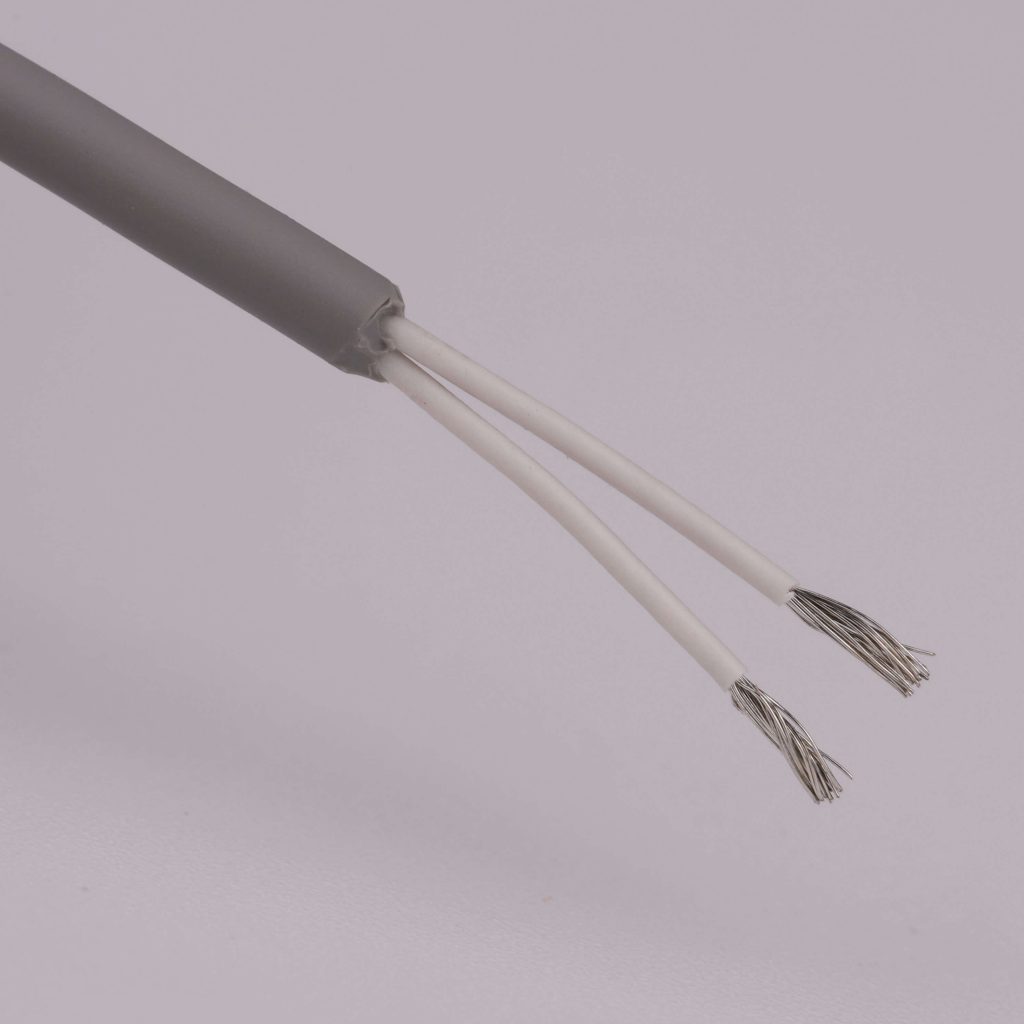

OD2.6MM 2 Core 25AWG Temperature Sensor Cable Medical TPU cable

2 Core Temperature Sensor Cable

Conductor:Tinned copper

Insulation :SR-PVC

Jacket:5040TPU

OD:2.6mm

OD2.6MM 2 Core 25AWG Temperature Sensor Cable Medical TPU cable

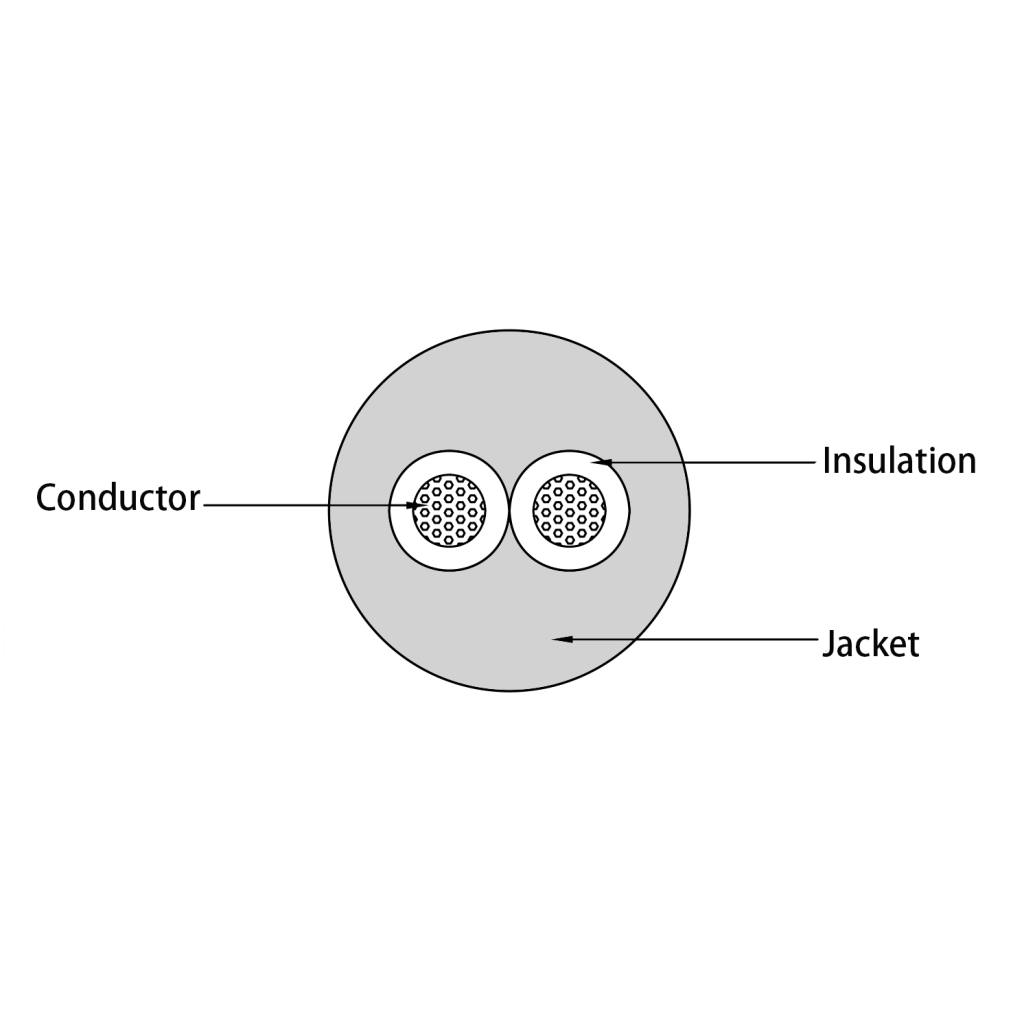

Technical Specification

Items Specification
Products name
Model TT202X
Conductor  Material Tinned copper
 Specification 19/0.10TC
 Insulation  Material SR-PVC
 Nom.Thickness 0.11
 Nom.O.D. ø0.80士0.05
 Colour White
 Jacket  Material (5040)TPU
 Nom.Thickness 0.4
 Nom.O.D. ø2.6士0.1
 Colour PANTONE 423C
