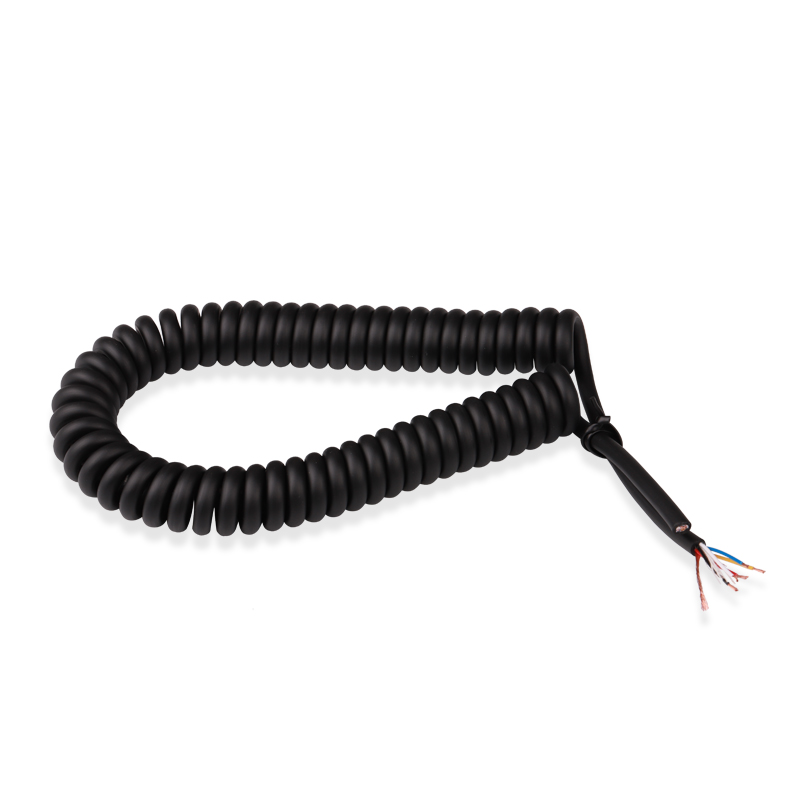

OD4.7MM 5 Core Spiral Cable Shielded Coil Wire-Co205x

Conductor:Bared copper+Nylon

Insulation:PP

Filler:Cotton Tissue

Shield:Bared copper

Jacket:85A TPU

OD:4.7MM

Technical Specification

Items Specification
Products name
Model CO205X
Conductor  Material Bared copper+Nylon Bared copper+Kevlar
 Specification 30/0.08BC+1000DNyolon 19/0.08TC+200DKevlar
 Insulation  Material PP PP
 Nom.Thickness 0.22 0.22
 Nom.O.D. ø0.95士0.03 ø0.95士0.03
 Colour Yellow White/Black/Red/Blue
Filler  Material  Cotton Tissue
 Shield  Material Bared copper
 Specification 35士2/0.10BC
 Coverage >90%
 Jacket  Material 85ATPU
 Nom.Thickness 0.92
 Nom.O.D. ø4.70士0.10
 Colour Black
